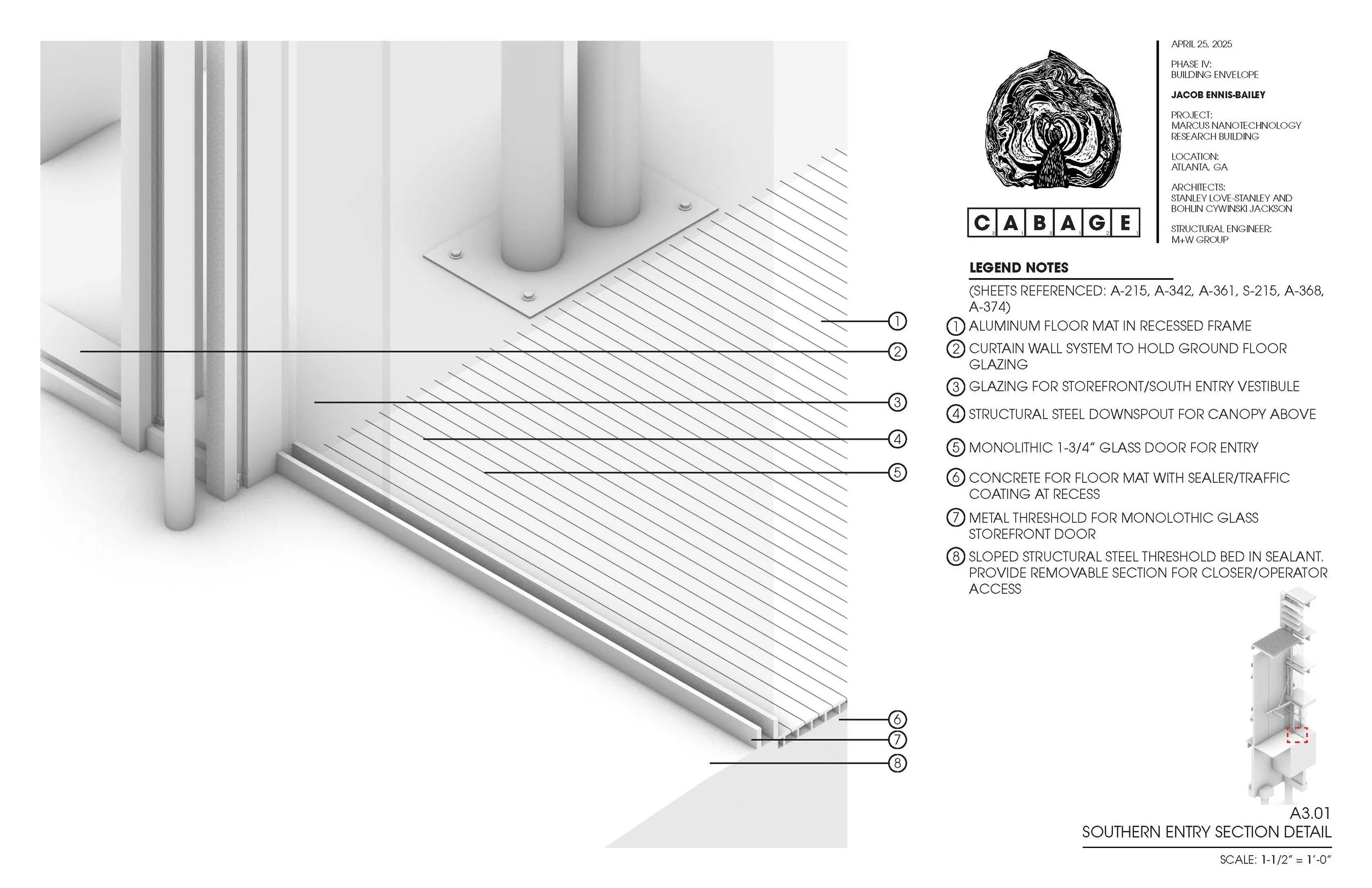

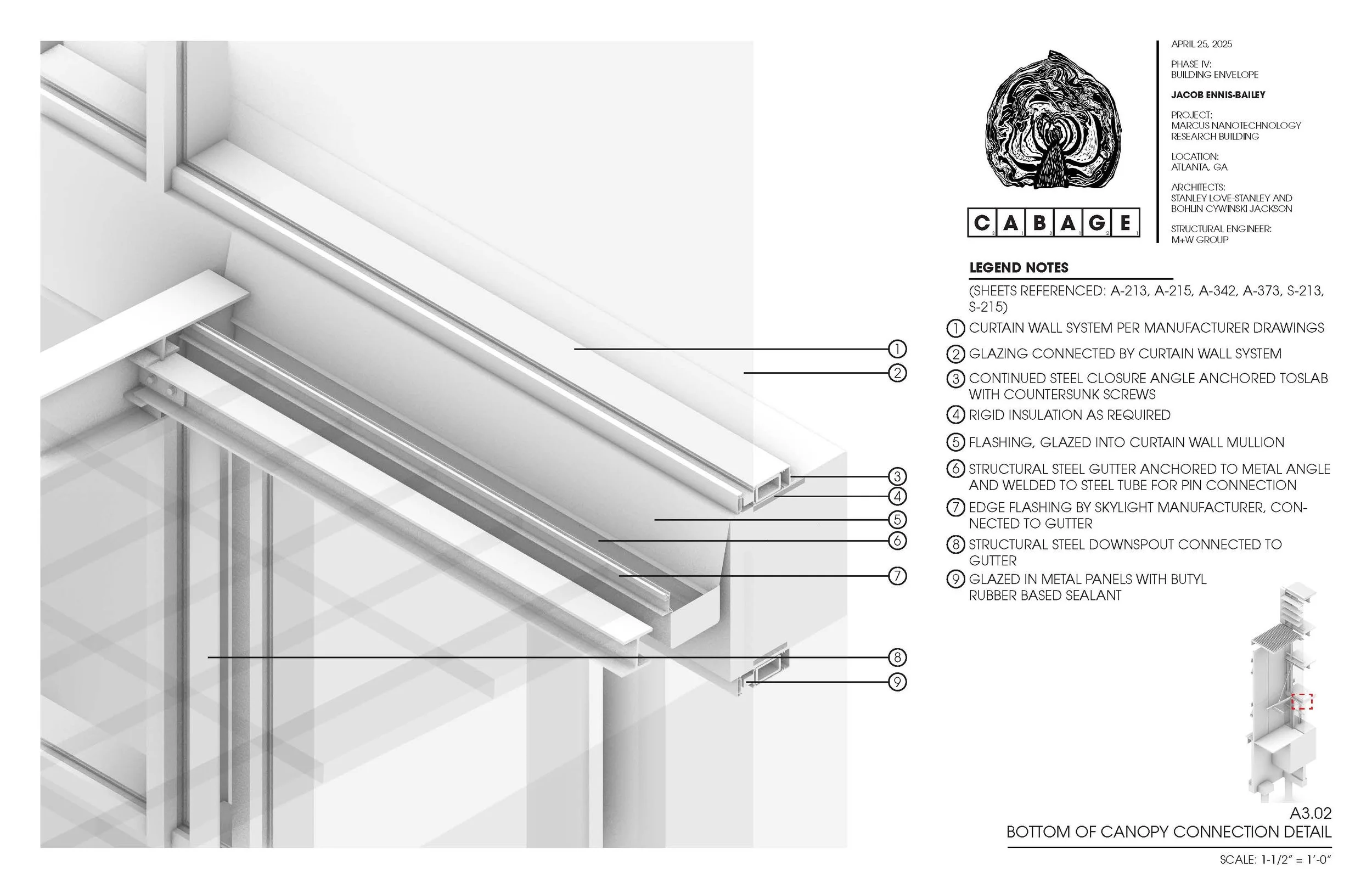

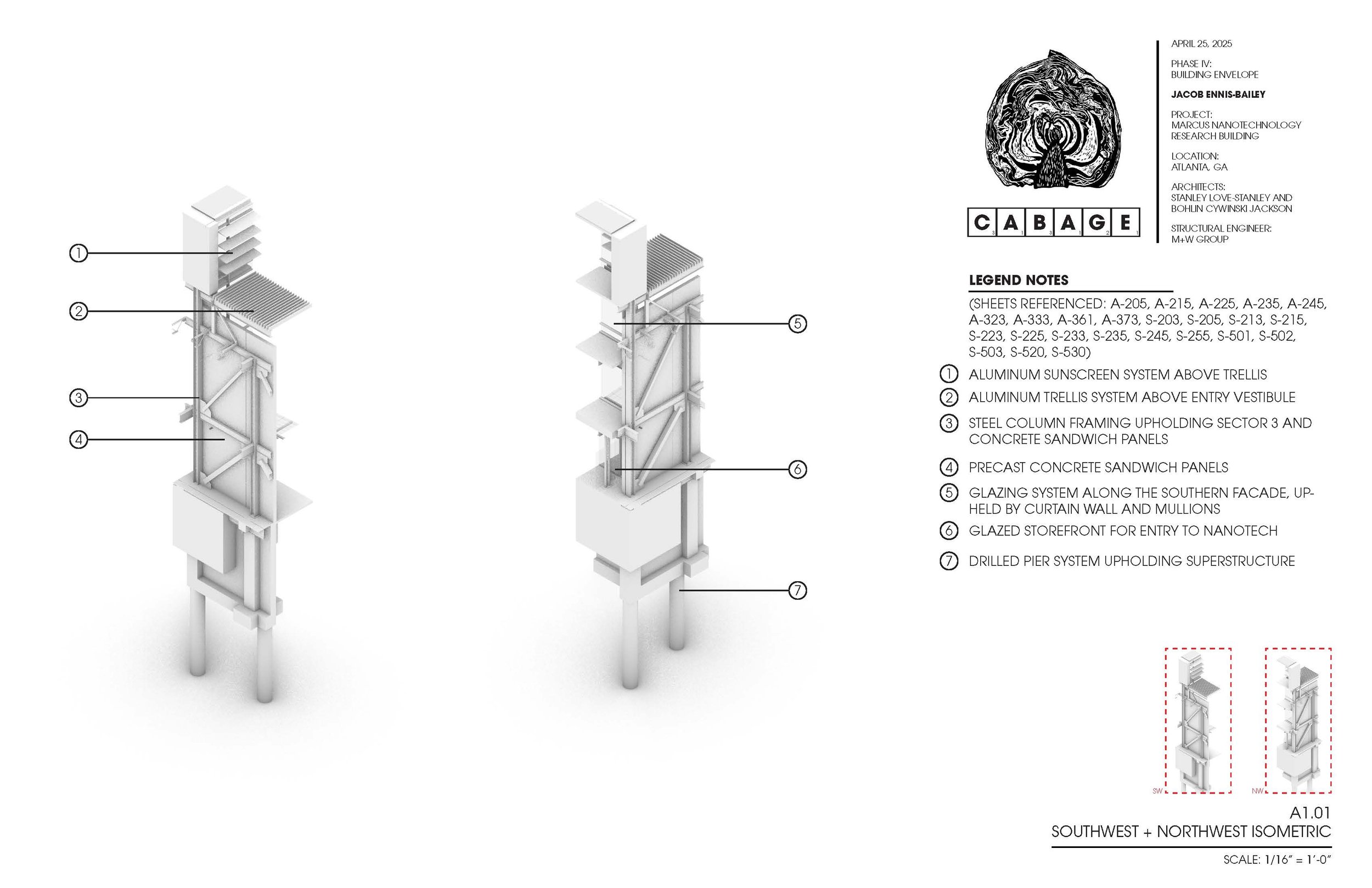

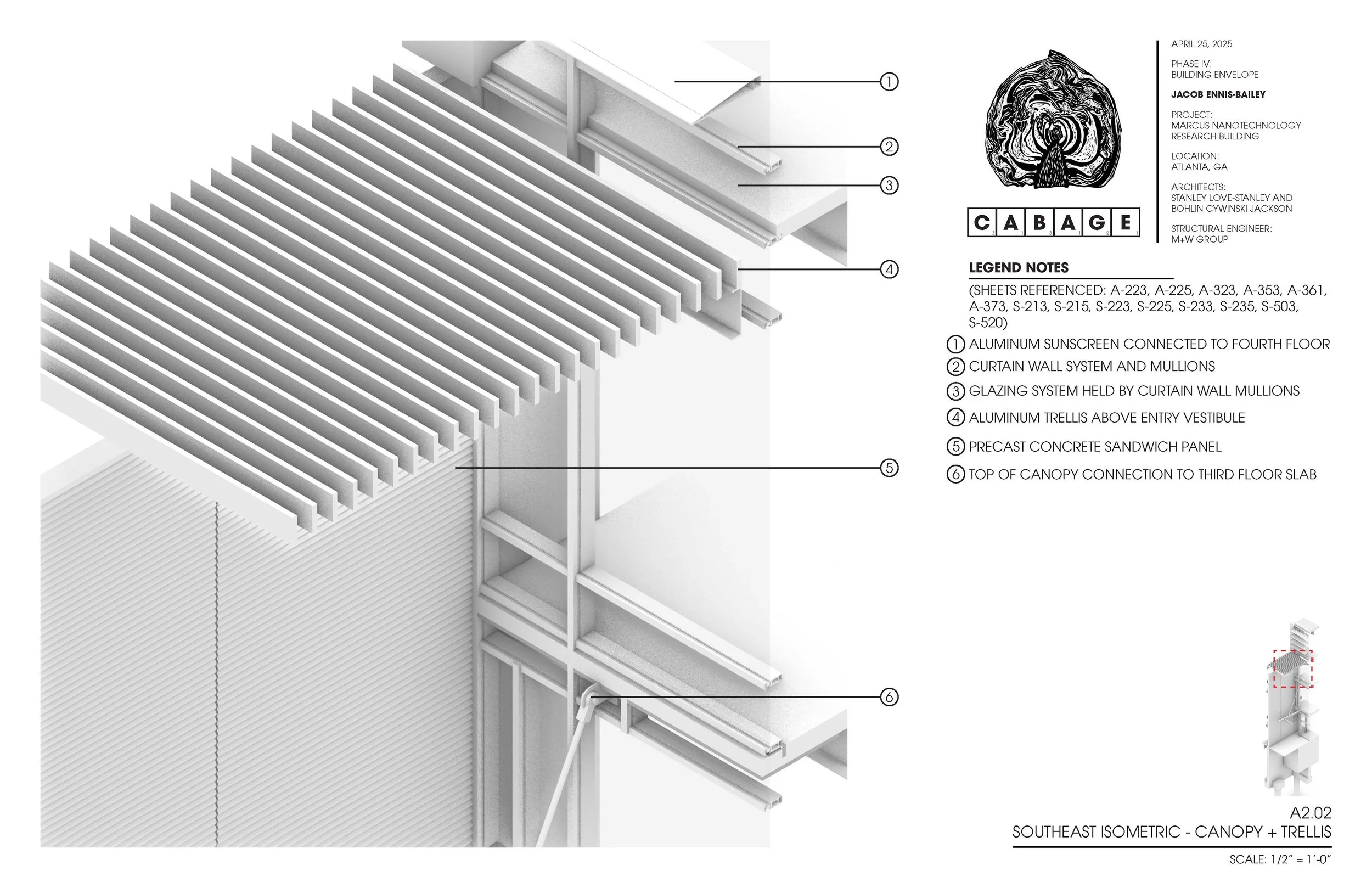

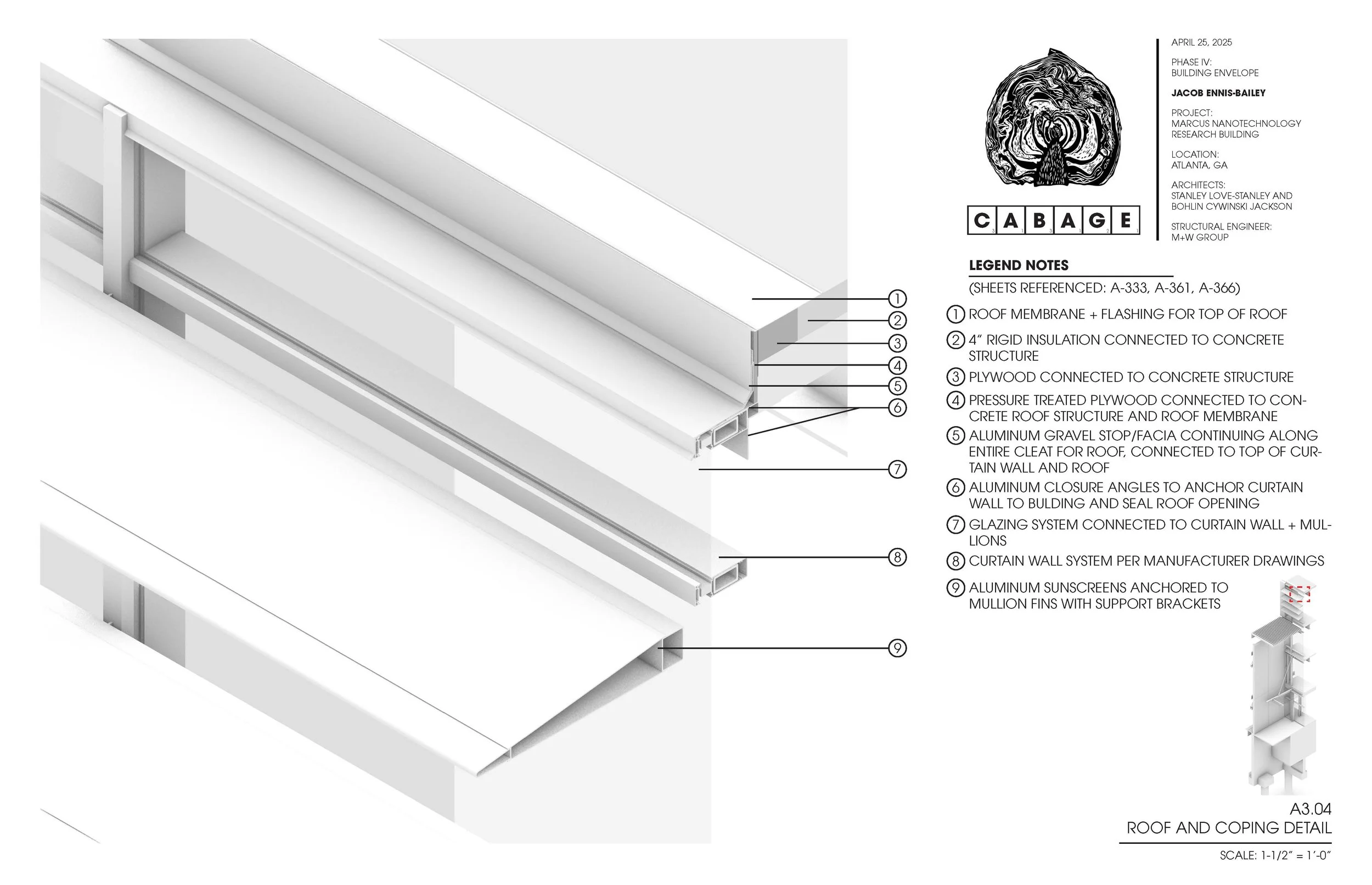

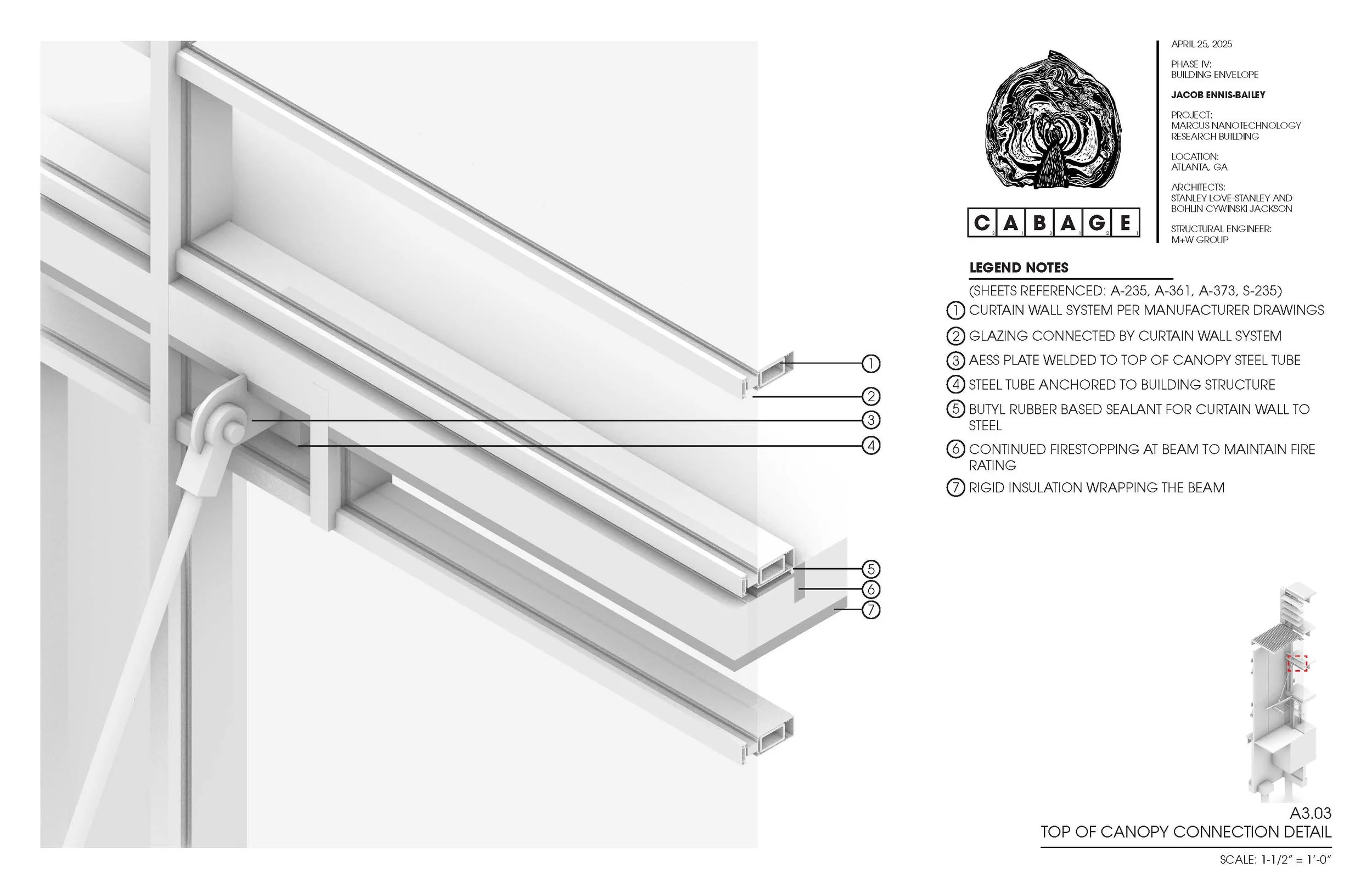

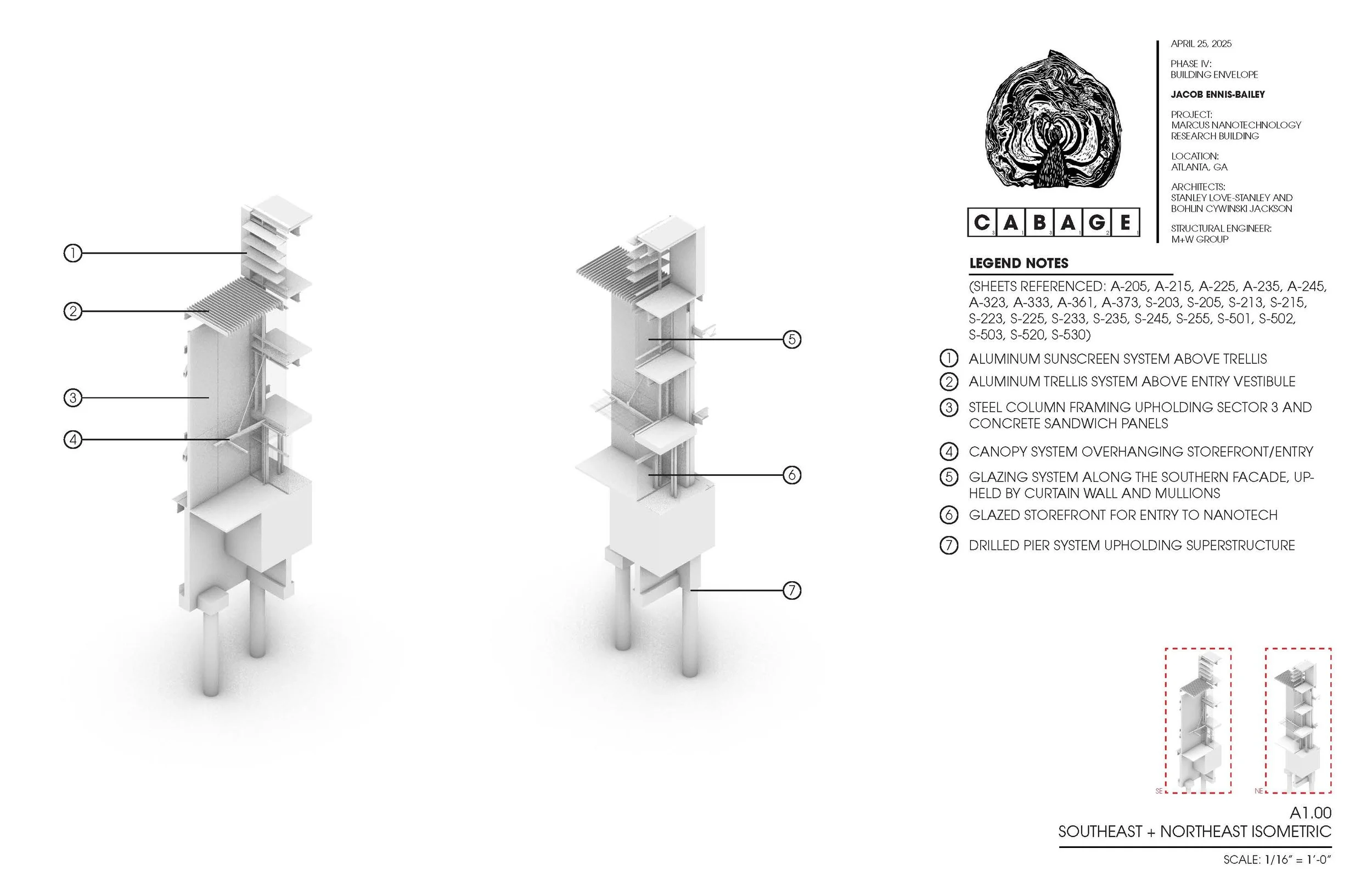

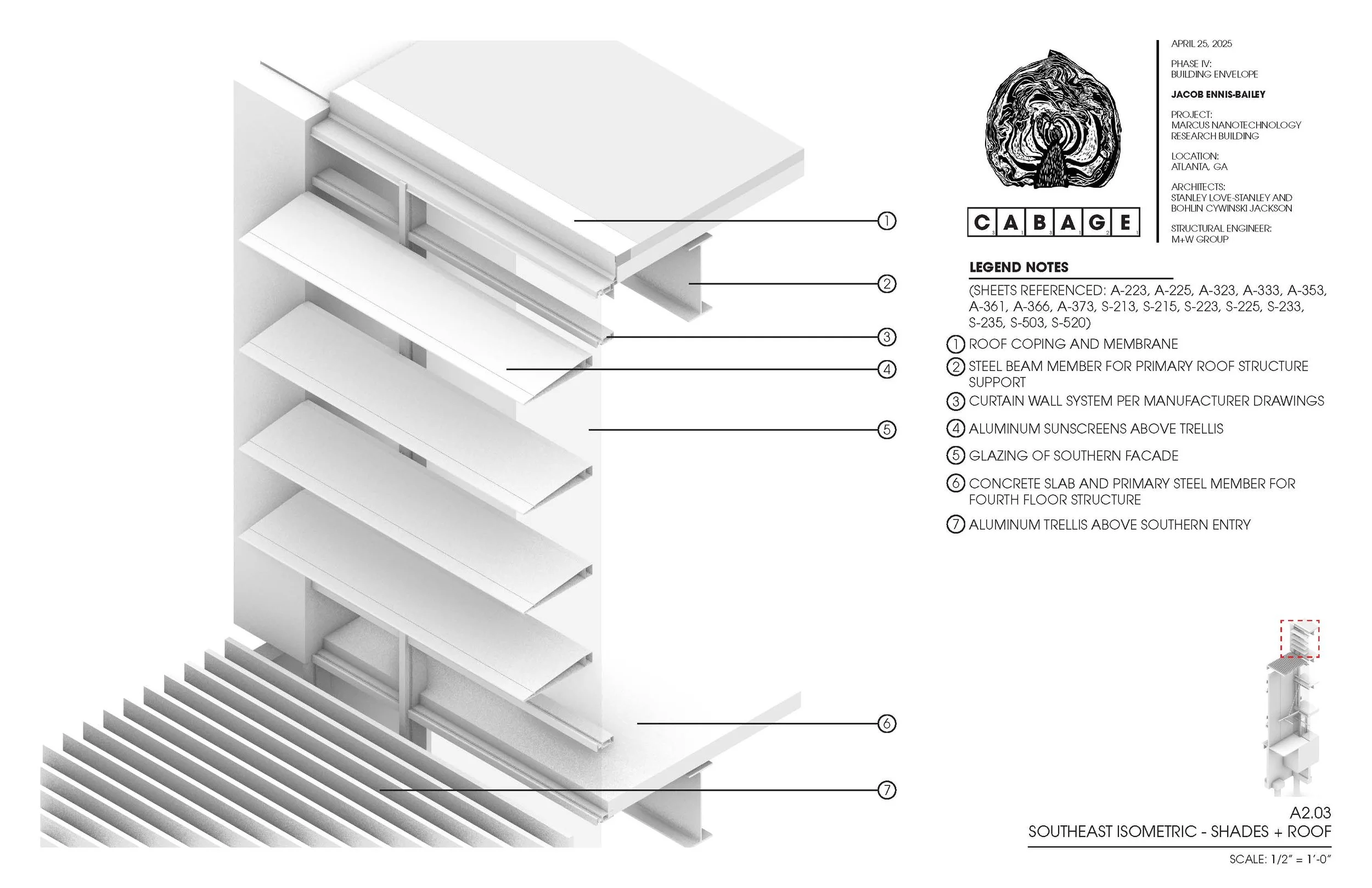

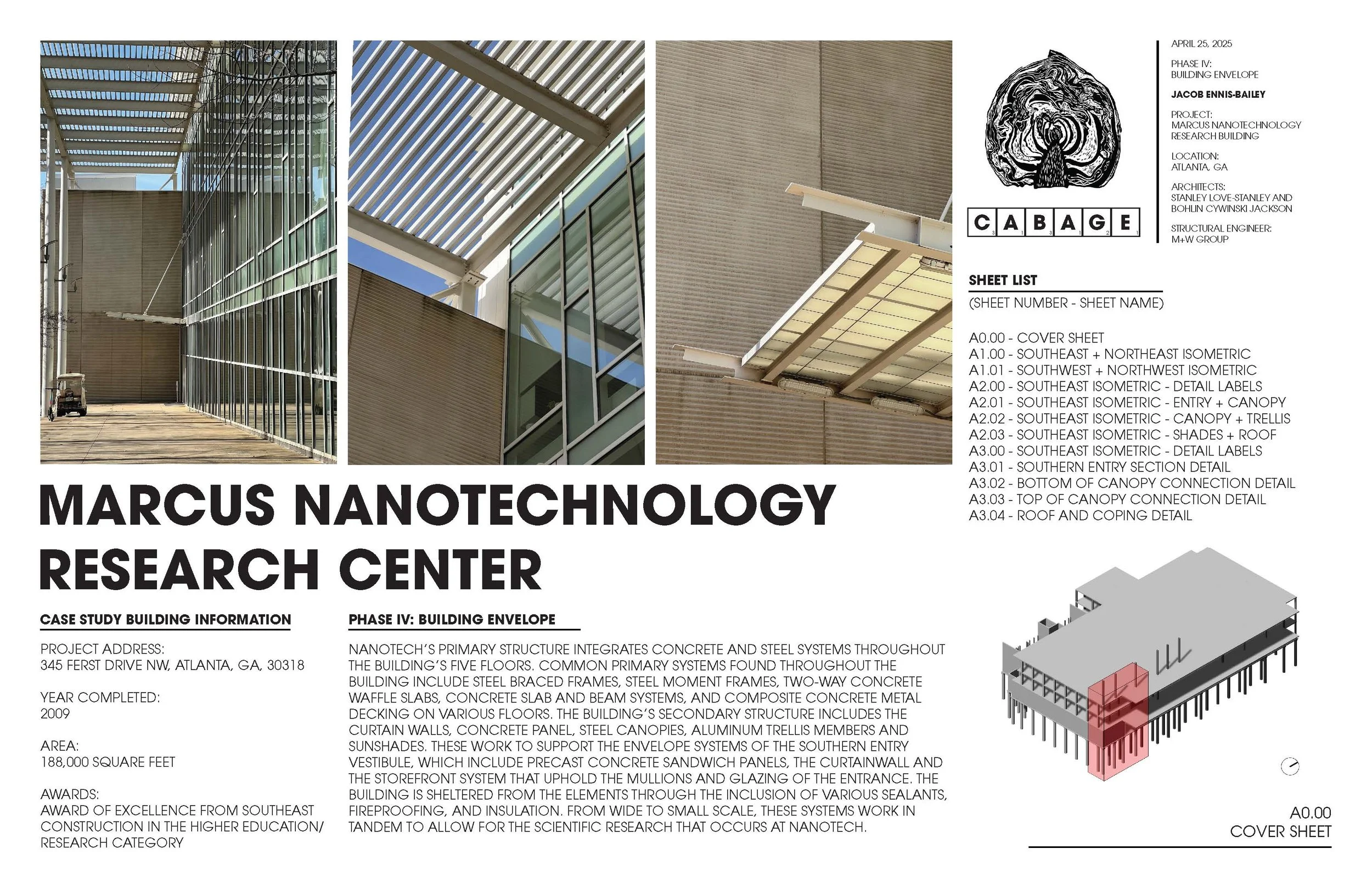

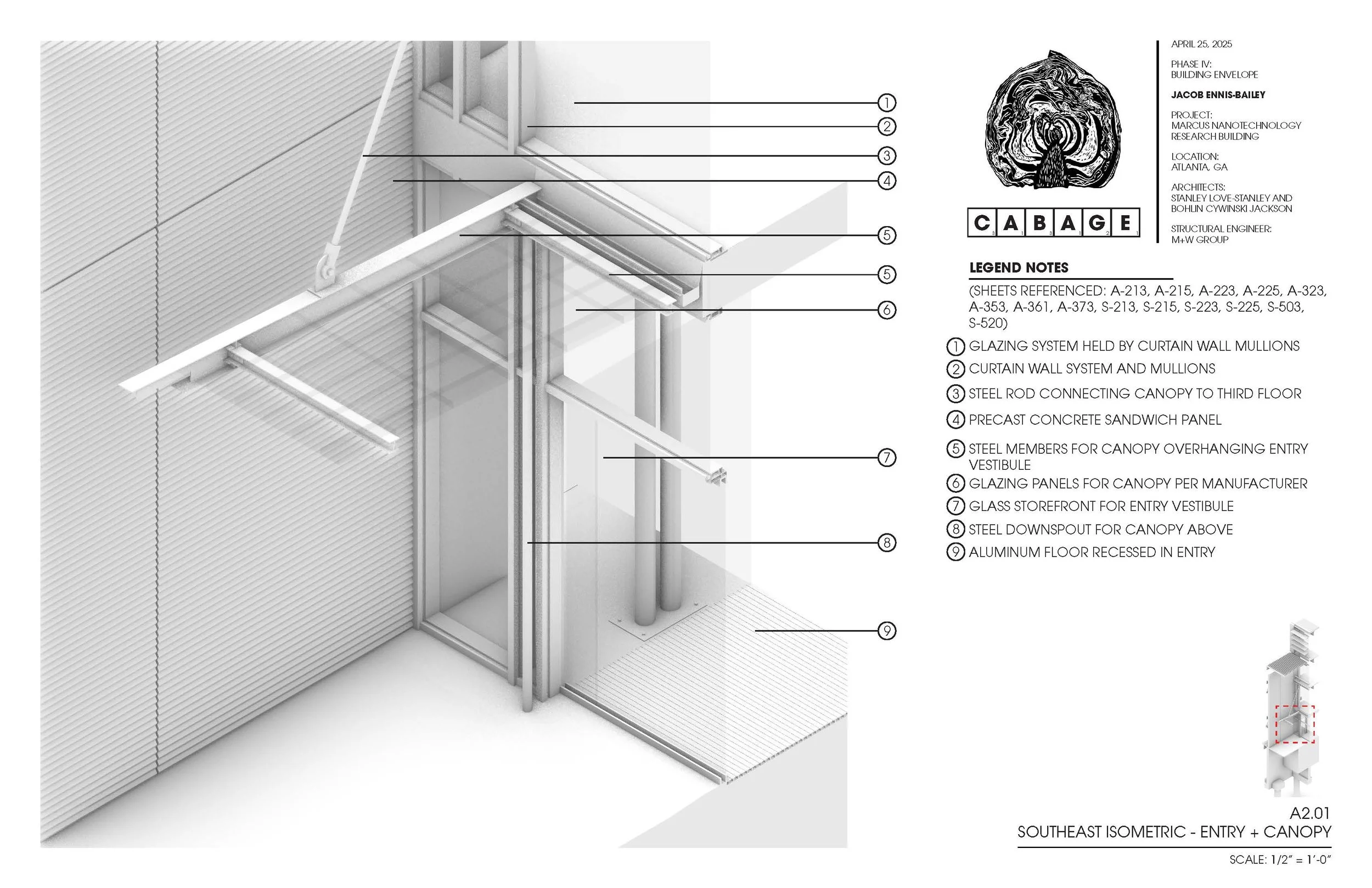

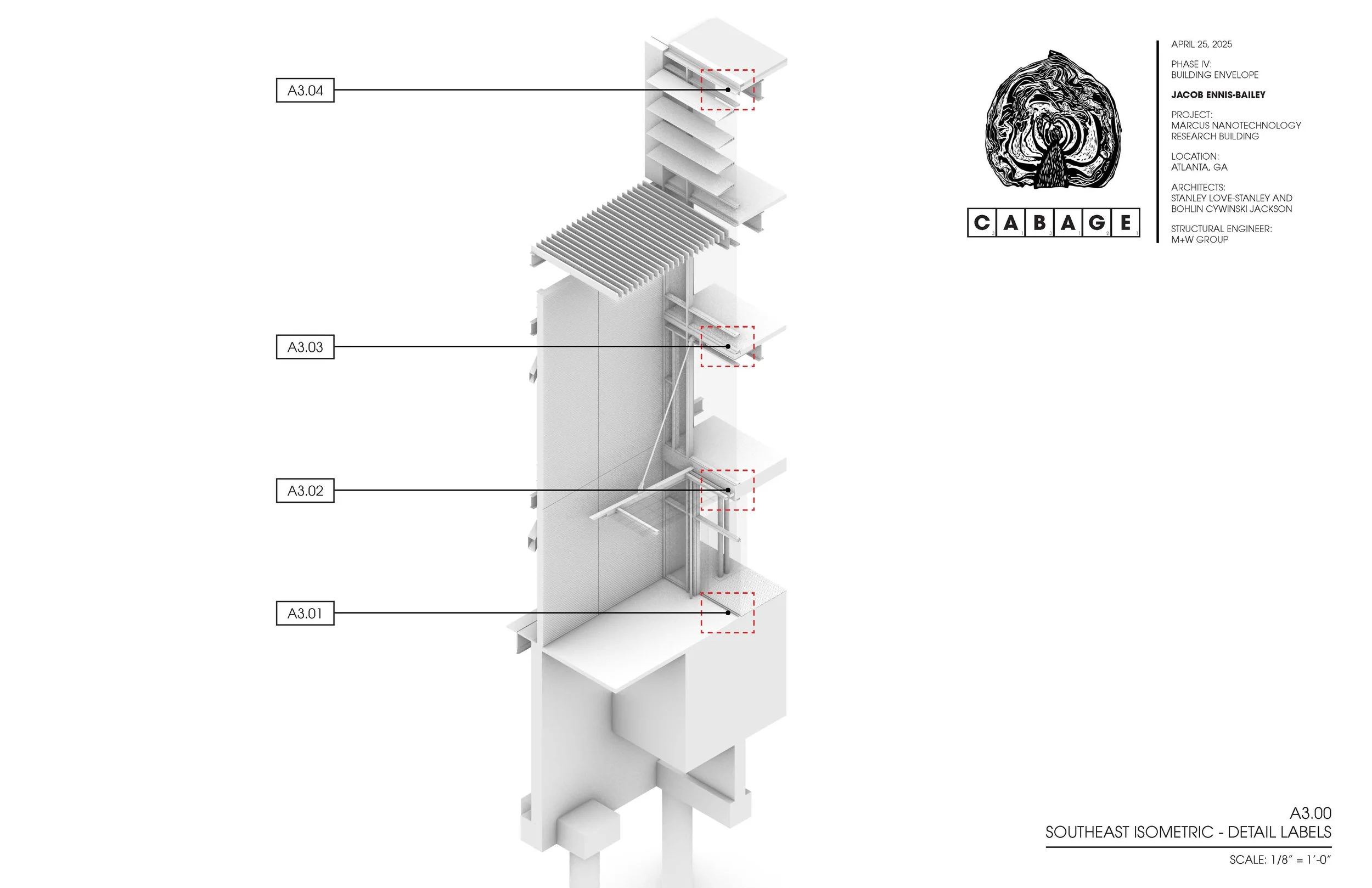

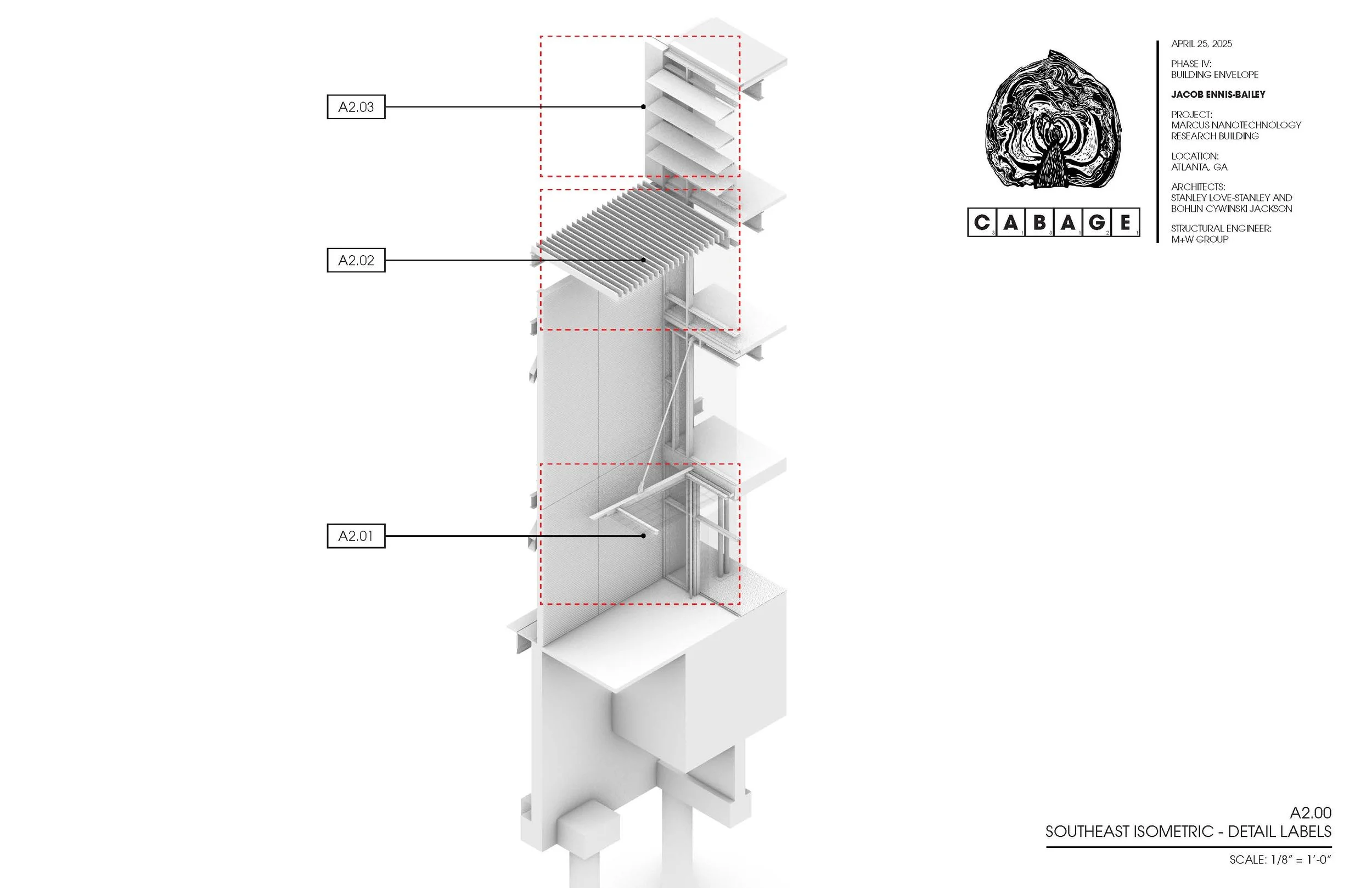

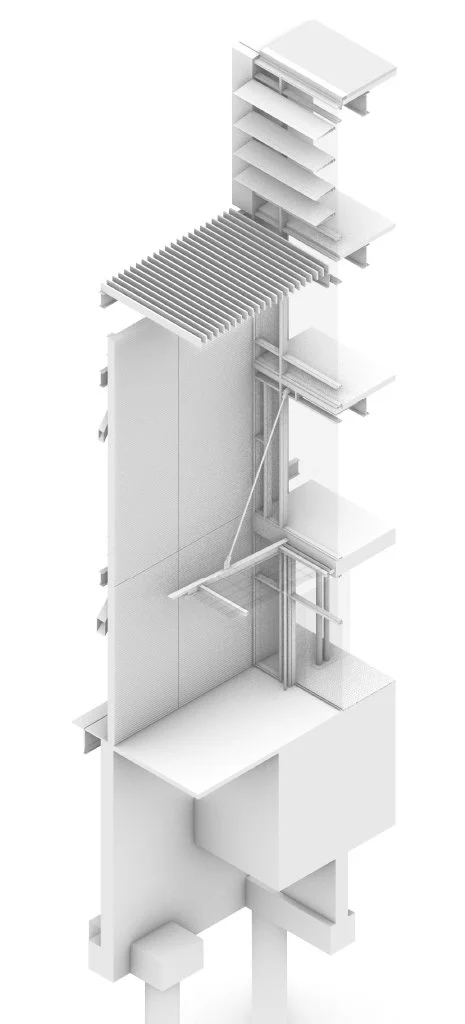

The Marcus Nanotechnology Research Center is a building located on Georgia Tech’s campus designed by the Bohlin Cywinski Jackson, Stanley-Love Stanley and the M+W Group. This facility houses the largest cleanroom laboratory in the southeast United States, along with classrooms, offices, and conference rooms. Here, I created a series of isometric construction drawings that focused on individual, detailed reconstruction of a sub-region of the building. Assigned to the building’s entry vestibule, these drawings integrate the secondary structure and envelope to the building’s primary steel frame.
